Red Wire Ceiling Fan Guide: Everything You Need to Know for Installation Success

Installing a new ceiling fan sounds simple, but if there’s one thing that tends to stump even experienced DIY enthusiasts, it’s the infamous red wire. If you’ve been wondering, “What is the red wire for a ceiling fan, and where does it connect?” you’re not alone! This guide will break everything down, step by step, so you can confidently handle your ceiling fan installation with or without that mysterious red wire.

Quick Overview of Red Wire Ceiling Fan Connections

Feature	Purpose
Red Wire	Typically used for fan light control
Black Wire	Runs the ceiling fan motor
White Wire	Neutral wire
Blue Wire (if present)	Optional light-kit connection

Understanding these wires is the first step to connecting everything properly and avoiding issues during installation.

What Is the Purpose of a Red Wire in a Ceiling Fan?

The red wire in ceiling fans, sometimes called the “traveler wire,” often puzzles homeowners. Its main function is to control the light kit on your fan, allowing it to operate separately from the fan blades. If you have a dual-switch setup in your home, the red wire is likely connected to the switch meant for the light.

Common Scenarios Where You’ll Encounter a Red Wire:

Dual-Switch Systems: One switch for the fan, another for the light.
Lighted Ceiling Fans Without Dual Switches: Unused red wire can be capped.
Ceiling Fan with Remote Control: Red wire may not be needed as remotes consolidate controls.

If the thought of handling all these wires overwhelms you, don’t worry. We’re breaking it all down below.

Step-by-Step Guide to Handling Red Wires During Installation

Whether you’re setting up or replacing a ceiling fan, here’s how to deal with the red wire:

1. Prepare for Installation

Before you begin, you’ll need a few tools:

Voltage tester
Screwdriver set
Wire nuts
Pro Tip: Always turn off power to the circuit at your breaker box before starting to avoid electric shock.

2. Inspect the Ceiling Wires

Typically, you’ll find wires in these colors in your ceiling box:

White (Neutral)
Black (Fan Motor)
Red (Light Control)
Ground (Bare Wire or Green Wire)

If there is no red wire present, your fan’s light kit and motor will operate from a single switch.

3. Connect the Wires

Connect black wire from the fan to the ceiling’s black wire.
Attach the white wires together.
Match the red wire from the ceiling to the blue wire of the ceiling fan’s light (if applicable).
Secure the ground wire to the metal box or grounding point.

Note: If there’s a red wire coming from the ceiling but not from the fan, cap it off unless you’re adding a separate light fixture.

4. Test and Wrap Up

Switch the power back on and test both the fan and the lights. A functional system usually means everything is wired correctly.

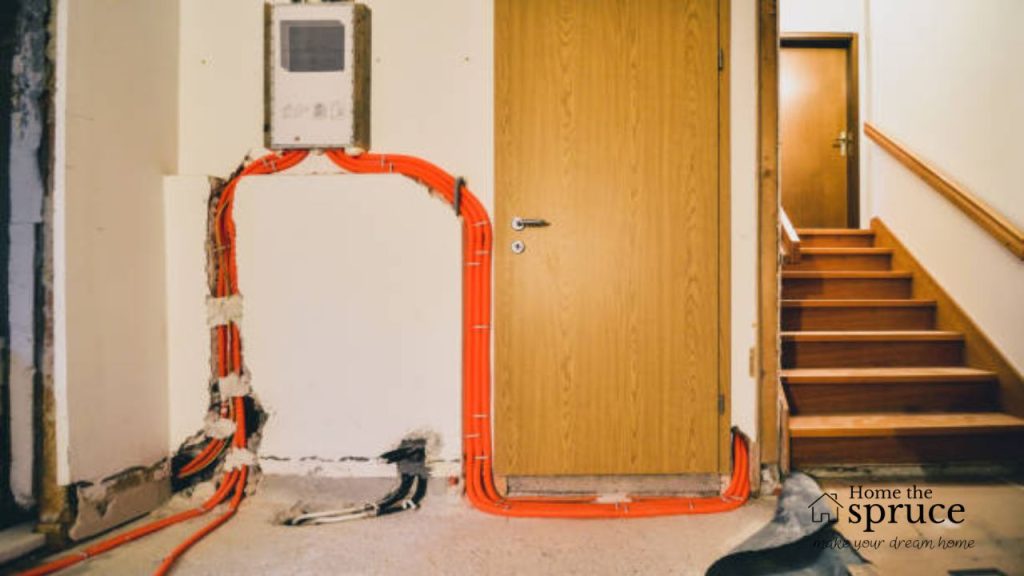

Real-Life Example of Installation Challenges

Homeowner Sarah from Phoenix attempted to install a ceiling fan with a light kit. Like many, she was puzzled by the extra red wire in her ceiling box. After learning about its use for dual-switch control, she connected it to the fan’s blue wire. Her setup now allows her to control the light and fan independently, thanks to the dual wall switch.

User Review: “I thought I’d have to call an electrician, but understanding what the red wire does made it manageable! Everything works perfectly!”

FAQs About Red Wire Ceiling Fans

1. What is the red wire for in a ceiling fan?

The red wire is primarily used to control the light kit independently in dual-switch setups.

2. What do I do if my ceiling fan has no red wire?

You don’t need to worry. Connect the black wires for general operation, and leave the blue wire disconnected if your fan has no light kit.

3. Can I connect the red wire to the black wire on a ceiling fan?

Yes, but only if you don’t plan on separating the light kit and fan motor functions.

4. Where does the red wire go on a ceiling fan?

The red wire connects to the blue wire from a light kit for independent light control.

5. Why is there an extra red wire for my ceiling fan?

This is common in homes pre-wired for ceiling fans with independent light and fan switches.

What If You Have a Hunter or Harbor Breeze Ceiling Fan?

Certain brands like Hunter or Harbor Breeze fans might come with slightly different wiring, especially if equipped with remotes. For example, a Hunter ceiling fan installation red wire might not even need connection since the remote handles both the fan and light operations.

Wrapping Up

Connecting a ceiling fan with a red wire may seem confusing, but with proper preparation and attention to detail, it can actually be straightforward. Remember:

Red wires usually control light kits.
If unused, cap them safely.
Follow manufacturer instructions for specific wiring configurations.

With this guide, you’re no longer scratching your head over “ceiling fan wires red, black, and white.” You’re ready to tackle any installation with confidence.
