Confused about the red wire sticking out from your ceiling when setting up a ceiling fan? You’re not alone. Ceiling fan wiring, especially with the infamous red wire, can feel like a daunting puzzle. Whether you’re installing a ceiling fan with lights, connecting a remote, or dealing with dual switches, this guide breaks down everything you need to know to wire your ceiling fan properly and safely.

Summary Table of Ceiling Fan Wiring Connections

This at-a-glance table can help you confirm the wiring layout before you begin any project.

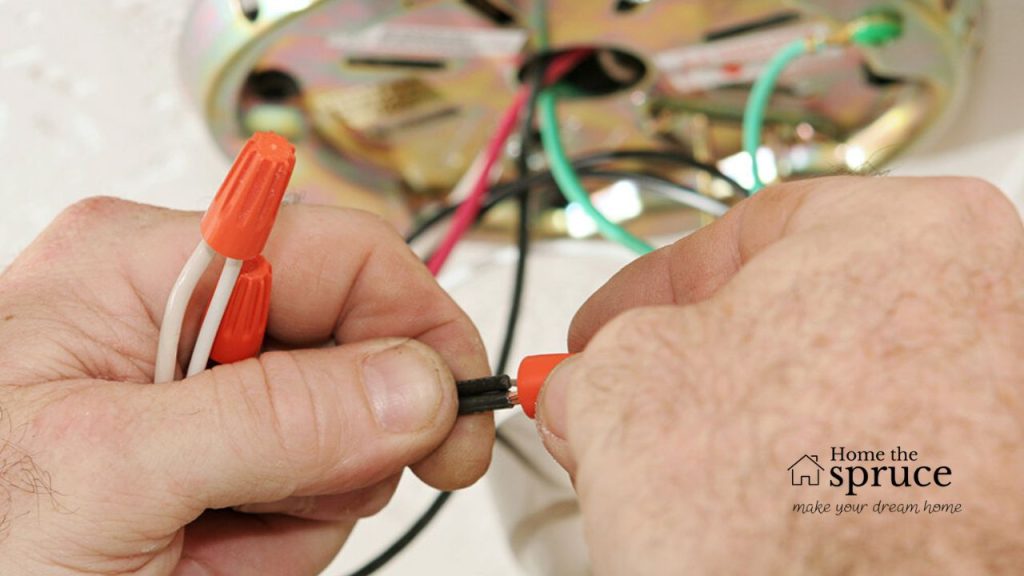

What Is the Red Wire for in Ceiling Fan Wiring?

The red wire, commonly found in ceiling fan installations, serves a unique purpose depending on your setup. Here are some common uses for the red wire:

• Controlling a Light Kit
  If your ceiling fan has a light fixture, the red wire is likely connected to a wall switch dedicated to the light.
• Dual Switch Setup
  If you have two separate wall switches for the fan and light, the red wire handles one function (typically the light), while the black wire is for the fan motor.
• Connecting a Remote Control
  For fans with remote controls, the red wire may be used to power the receiver.
• An Unused Wire
  Some homes have pre-installed red wires that are not always connected. These are “extra” wires included for versatility in future electrical projects.

When unsure, always consult the wiring diagram for the specific ceiling fan or your home’s circuit layout.

Real-Life Example

Anna shared her weekend DIY experience on Reddit, noting that her previous light fixture’s red wire had confused her during a fan installation. “I didn’t realize I needed to connect the red wire directly to the light kit,” she said. “Luckily, reading the fan’s manual cleared it up.”

How to Handle Ceiling Fan Wiring with a Red Wire

Tools You’ll Need

• Screwdriver
• Voltage tester
• Wire nuts
• Electrical tape

Step-by-Step Ceiling Fan Installation with a Red Wire

1. Turn Off Power

Always start by turning off the power from the circuit breaker to avoid shocks. Use a voltage tester to confirm no electricity flows through the wires.

2. Identify All Wires

For safety, identify your wires (black, white, green, and red) and their functions based on the wiring diagram.

3. Connect the Black Wire to the Fan Motor

This black wire powers your fan motor. Ensure the connection is snug.

4. Connect the White Wire as Neutral

The white wire completes the circuit. Connect it to the neutral wire on the fan unit.

5. Connect the Red Wire to the Light Fixture

If your fan includes a light, connect the red wire to the light kit’s wires. If no light is present, cap off the red wire with a wire nut.

6. Secure the Grounding Wire

Attach the green wire to the ceiling box’s ground wire or grounding screw.

7. Test and Finalize

Turn the power back on and test both the fan and light for proper function.

Pro Tip: Always refer to your ceiling fan’s installation manual for specific details related to your model.

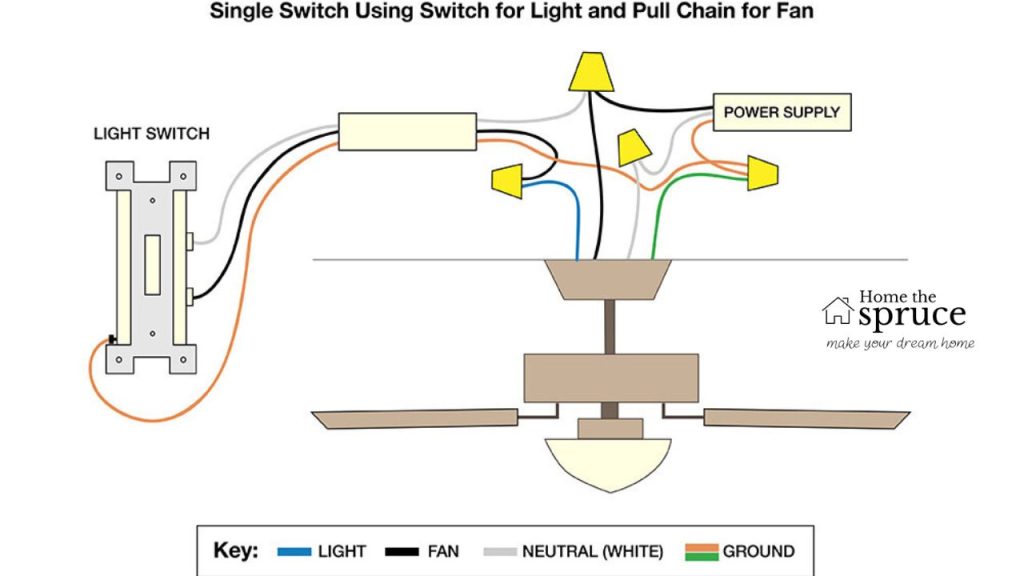

Wiring Diagram Example

Here’s how a common setup would look with wiring!

This ensures both the fan and light operate independently or through a remote control if applicable.

Troubleshooting Ceiling Fan Wiring Issues

Even with a clear guide, wiring issues can arise. Here’s how to troubleshoot common problems:

1. The Fan Works but the Light Doesn’t

• Check if the red wire is connected to the light fixture wires.
• Inspect the wall switches to ensure they function properly.

2. No Power to the Fan or Light

• Confirm the circuit breaker is on.
• Verify connections, especially the black and white wires.

3. Unused Red Wire When Installing Without a Light

• Cap off the red wire securely with a wire nut to prevent electrical hazards.

User Insight

James mentioned, “When I capped the red wire with tape, I avoided complications later when adding a light kit to my ceiling fan.”

FAQs About Ceiling Fan Wiring with a Red Wire

1. What Happens If I Don’t Use the Red Wire?

If your fan doesn’t have a light, the red wire remains unused. Secure it with a wire nut.

2. Where Does the Red Wire Go on a Ceiling Fan?

Connect it to the light fixture’s wire if your ceiling fan includes one.

3. Can I Connect the Red and Black Wires Together?

No, this may create a short circuit. These wires serve separate functions (light vs. fan).

4. What If My Ceiling Box Has No Red Wire?

Not all setups include a red wire. Your fan and light may operate together through a single switch or remote.

5. Why Use a Voltage Tester Before Starting?

To confirm no active current is flowing, ensuring safety during installation.

Final Thoughts

Handling ceiling fan wiring with a red wire doesn’t have to be intimidating. By understanding the purpose of each wire and following a systematic installation process, you can achieve a functional and safe setup. Always double-check your connections and, when in doubt, consult a licensed electrician.

This article demystifies ceiling fan wiring with red wires, helping you confidently tackle your next DIY project!
