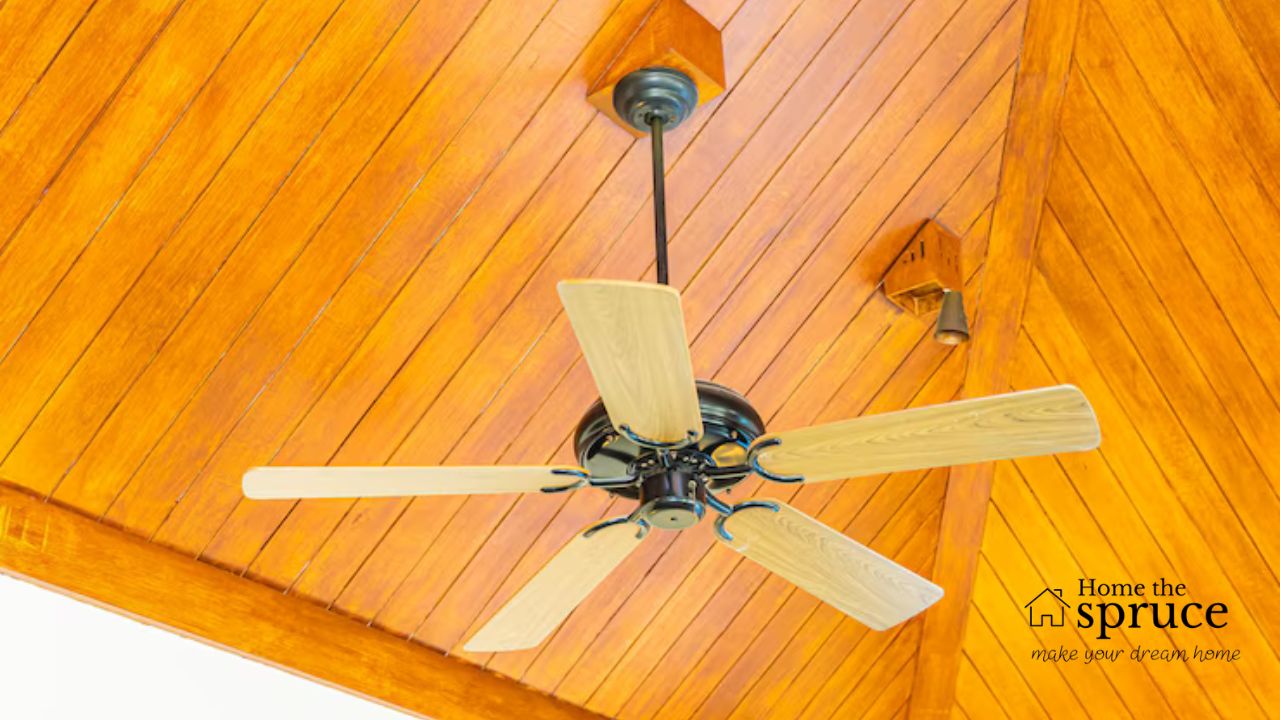

Ceiling Fan Red Wire Explained: Ultimate Installation Guide

Are you puzzled by the red wire hanging from your ceiling while installing a fan? This small detail often leaves even the most experienced DIY enthusiasts scratching their heads. The “ceiling fan red wire” is an integral part of certain wiring setups and can make or break how effectively your fan operates. This guide is here to take the mystery out of wiring your ceiling fan with the red wire and help you approach your project with total confidence.

Whether you’re wiring a new ceiling fan, replacing an old one, or working with dual switches, we’ll provide easy-to-follow steps, important details, and expert tips to ensure success!

Quick Reference Table for Ceiling Fan Wire Connections

Wire Color	Function	Connection
White	Neutral wire (completes the circuit)	Connects to fan’s neutral (white wire)
Black	Fan motor power	Connects to fan’s black wire
Red	Light kit power (optional light feature)	Connects to fan’s light wire (blue)
Green	Grounding wire for safety	Connects to metal housing or green wire

This table provides a simple snapshot of where each wire connects, but keep reading for detailed wiring steps and common wiring configurations!

What is the Purpose of a Red Wire in a Ceiling Fan?

The red wire in a ceiling fan setup plays a unique and often overlooked role. This wire is primarily used to control a light fixture that comes with the fan. If your ceiling fan has separate switches for the fan and light, the red wire is what enables independent operation.

When Will You Encounter a Red Wire?

Ceiling fans with light kits
Homes with a dual switch setup (one for the fan, one for the light)
Older home wiring systems that use red wires for various purposes

For example, if you’ve installed a fan in a living room and want the fan and light switch to function independently, the red wire is essential.

What Happens If the Red Wire Isn’t Used?

If the red wire isn’t connected, you’ll generally lose the ability to control a fan’s light kit separately. It’s perfectly fine to cap off the red wire if you only plan to use the fan.

Step-by-Step Guide to Installing a Ceiling Fan with a Red Wire

Tools You’ll Need

Voltage tester
Electrical tape
Wire connectors
Screwdriver

Step 1: Switch Off the Power

Before touching any wires, turn off the power at the circuit breaker. This prevents electrical shocks.

Step 2: Examine the Wiring

Locate the wires in your ceiling. Use a voltage tester to confirm there’s no live current. Typically, you’ll find the following:

White wire (neutral)
Black wire (fan motor power)
Red wire (optional light connection)
Green wire (grounding for safety)

Step 3: Connect the Wires

Pair the white wires from the ceiling and fan together using a connector.
Pair the black wire from the ceiling to the fan’s black wire.
If your fan has a light fixture, connect the red wire from the ceiling to the fan’s blue wire (labeled for lights).
Connect the green wire from the ceiling to the fan’s grounding wire or metal housing.

Step 4: Secure Connections

Wrap each connection securely with a wire nut, ensuring no exposed wiring is visible. Use electrical tape for added safety.

Step 5: Restore Power and Test

Turn the power back on and test the wall switches. One switch should control the fan, and the other should operate the light.

Common Issue? Lights or fans not responding might mean a wire isn’t securely connected.

Real-Life Reviews on Ceiling Fan Installation

Daniel H. (★★★★★): “Using the red wire for my light kit was easier than I thought! Now, I can control my fan and lights separately without confusion.”

Lisa P. (★★★★☆): “I had an extra red wire in the ceiling, which was confusing until I followed step-by-step instructions. Problem solved in under an hour!”

Joseph W. (★★★★☆): “Wiring ceiling fans with dual switches was tricky, but understanding the red wire’s purpose changed the game.”

These examples showcase how others have successfully installed ceiling fans using red wires for functional and visual perfection!

Common FAQs About the Ceiling Fan Red Wire

Q1. What is the red wire on a ceiling fan used for?

The red wire primarily powers the fan’s light kit. It allows you to independently control the fan and light using separate switches.

Q2. Can I cap off the red wire?

Yes, if your fan doesn’t include a light kit or you don’t want independent control for the light, you can safely cap it.

Q3. Can I connect the red wire and black fan wire together?

No, unless stated in your fan’s installation manual. Mixing these can cause functionality or safety issues.

Q4. Where does the red wire go on a fan with no lights?

Nowhere! It should be capped securely with a wire nut.

Q5. Can I replace a ceiling fan without a red wire?

Yes! Modern fans can operate without needing a red wire if there’s no independent light switch.

Final Thoughts

Understanding the role of the “ceiling fan red wire” removes guesswork and confusion during fan installation. If your setup includes dual switches or a light fixture, the red wire ensures smooth operation.

Follow this guide, keep safety top of mind, and consult a professional electrician if in doubt. With patience and care, connecting your ceiling fan with a red wire can be a straightforward DIY project, adding functionality and comfort to your home.
